Wearing Parts for Portable Engines

For the benefit of owners and restorers, this page reproduces descriptions of wearing parts for Paxman portable steam engines offered by the Company in its publication number 683, dated September 1913. The illustrations in the original publication were designed solely for identification purposes and are not engineering drawings. They do however give an idea of what each part looks like.

An image (in GIF format) of each illustration page can be viewed by clicking on the relevant underlined illustration number at the start of each section below. Initially the graphic may display in your browser in reduced and distorted form. In Internet Explorer (IE) v.6 click on the bottom right hand corner of the image, in IE v.7 anywhere on the image, to expand it to its full size.

There are two methods of downloading/saving one of these images to your hard drive: EITHER right click on the relevant underlined illustration number on this page, then select 'Save Target As...' (or equivalent if using a browser other than IE) and save to your desired folder; OR click on the link below to display the image in your browser, then right click on the image, select the 'Save Picture As...' option and save to your desired folder.

PLEASE NOTE: The numbers on this page are not part numbers; they are only for referencing the illustrations in the parts booklet.

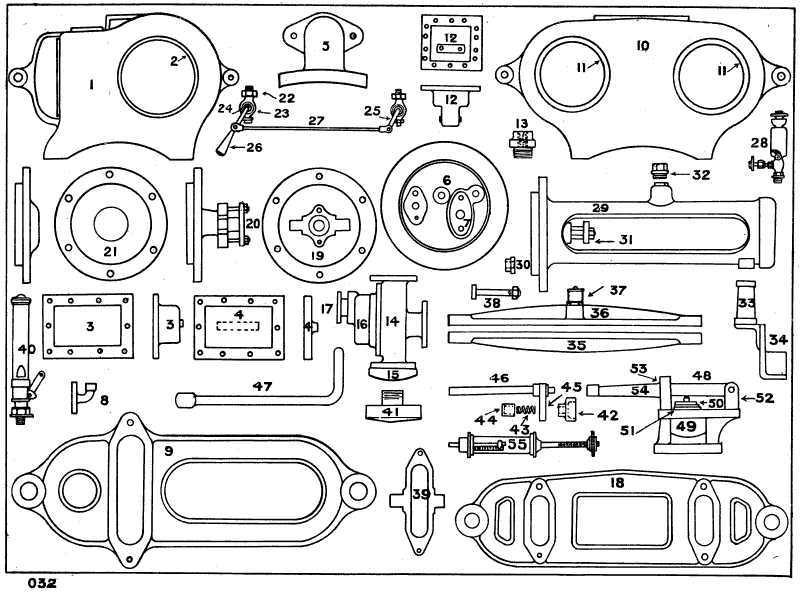

Illustration 032

CYLINDER, FITTINGS, &c.

1  Cylinder body (Single-cylinder engines)
2  Cylinder liner
3  Steam chest cover (for single-slide engines)
4  Steam chest cover  (for auto-gear engines)
5  Steam bend
6  Regulator cover
7  Regulator cover gland
8  Steam whistle bend
9  Bridge plate. (Single-cylinder engines)
10  Cylinder body. (Double-cylinder engines)
11  Cylinder liners   " "
12  Steam chest cover   " "
13  Lubricator plug   " "
14  Regulator body   " "
15  Regulator body seating   " "
16  Regulator cover   " "
17  Regulator cover gland   " "
18  Bridge plate   " "
19  Cylinder cover, front end (for engines fitted with flat crosshead guides)
20  Glands for ditto
2I  Back cylinder cover

22  Draincock, complete
23     Body
24     Plug
25     Lever
26     Handle

27  Draincock coupling rod
28  Cylinder grease cup, complete

29  Bored guide for crosshead
30     Neck bush
31     Gland
32     Lubricator plug
33     Support
34     Support bracket

35  Bottom motion bars for crosshead
36     Top ditto
37     Lubricator
38     Bolts for motion bars
39     Support

40  Steam whistle and valve, complete
4I  Anti-priming basket and pipe, complete

42  Regulator valve
43     Spring
44     Spring cap
45     Bridle
46     Spindle
47     Handle

48  Double spring-balance safety valve, complete
49     Body
50     Valve
5I     Valve seat
52     Fulcrum pin
53     Guide pin
54     Lever
55     Spring balance

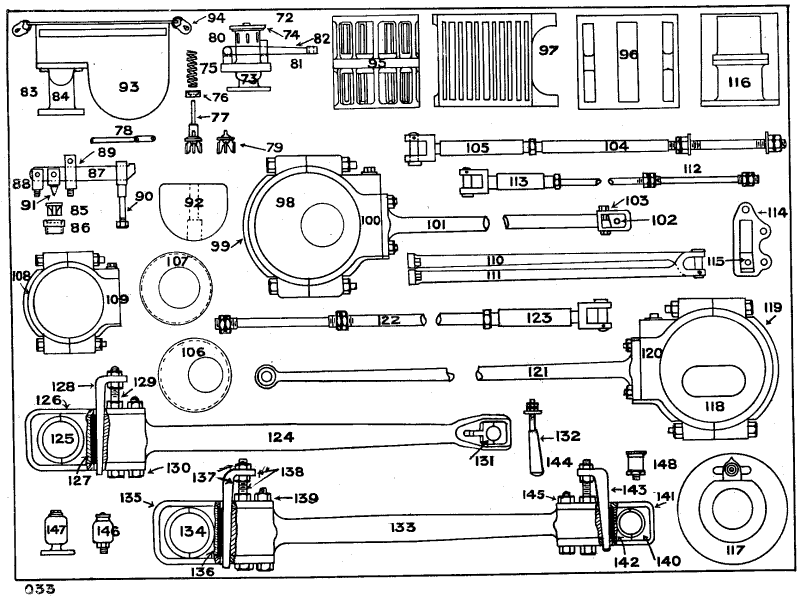

Illustration 033

72  Lock-up and spring- balance safety valve, complete
73     Body
74     Screwed cap
75     Spring
76     Spring washer
77     Valve, with stalk
78     Easing lever
79     Valve
80     Fulcrum stud
81     Guide stud
82     Lever

83  Double lever-and-weight safety valve, complete
84     Body
85     Valves
86     Valve seatings
87     Lever
88     Fulcrum pin
89     Guide stud
90     Bolt for weight
91     Valve stud
92     Weight, in halves
93     Sheet-iron cover
94     Padlocks

AUTOMATIC EXPANSION GEAR

95  Main slide valve of automatic expansion gear
96     Expansion slide valve
97     Anchor plate
98     Main eccentric sheave
99     Main eccentric strap, outer half
100     Main eccentric strap, inner half
101     Main eccentric rod
102     Brasses for ditto
103     Cotter adjusting bolt for ditto
104     Main eccentric valve spindle
105     Main eccentric valve spindle joint and pin
106     Long-throw eccentric sheave
107     Short-throw ditto
108     Auto eccentric straps, outer half
109     Auto eccentric straps, inner half
110     Long-throw eccentric rod
111     Short-throw ditto
112     Automatic valve spindle
113     Joint for ditto
114     Automatic valve link
115     Automatic valve die

THROTTLE VALVE GEAR

116  Throttle valve gear, slide valve
117  Cut-off plate
118  Eccentric sheave
119  Eccentric strap, outer half
120  Eccentric strap, inner half
121  Eccentric rod
122  Valve spindle
123  Joint and pin for ditto

124  Connecting rod (for engines fitted with bored crosshead guide)
125     Brasses, large end
126     Strap, large end
127     Adjusting plate
128     Cotter, large end
129     Cotter bolt, large end
130     Bolt, large end
131     Brasses, small end
132     Cotter bolt, small end

133  Connecting rod (for engines fitted with flat crosshead guides)
134     Brasses, large end
135     Strap, large end
136     Adjusting plate
137     Cotter, large end
138     Cotter bolt, large end
139     Bolt, large end
140     Brasses, small end
141     Strap, small end
142     Adjusting plate
143     Cotter
144     Cotter bolt
145     Bolt

146  Lubricator for large end of connecting rod
147  Lubricator for large end of connecting rod (for engines fitted with flat crosshead guides)
148  Lubricator for small end of connecting rod (for engines fitted with flat crosshead guides)


Illustration 034

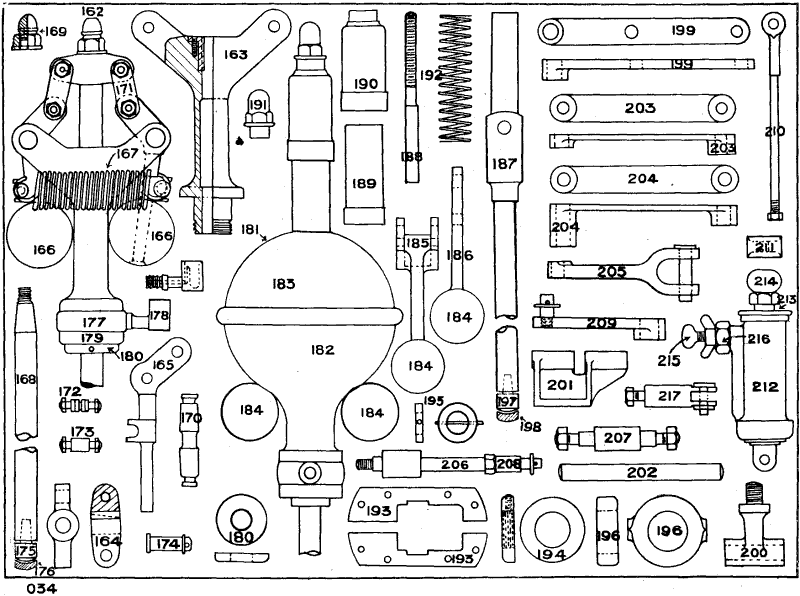

AUTOMATIC GOVERNOR

162  Spring governor, complete
163     Shank with sliding key
164     Crosshead
165     Arms
166     Balls
167     Springs
168     Spindle
169     Top cap
170     Tension gudgeons
171     Links
172     Crosshead pins
173     Pin for links
174     Pins for governor arms
175     Toe piece for spindle
176     Shoe piece for ditto
177     Friction collar
178     Oil cup for ditto
179     Screwed adjusting collar and set screw
180     Collar and taper pin

181  Globe governor, complete
182     Body
183     Body cover
184     Balls
185     Arm with fork end
186     Arm with solid end
187     Spindle
188     Extension screw
189     Spring box
190     Cap for ditto
191     Adjusting cap for ditto
192     Spring
193     Plates for rollers
194     Screwed adjusting collar and set screw
195     Collar and taper pin
196     Friction collar
197     Toe piece for spindle
198     Shoe piece for spindle

AUTOMATIC GOVERNOR GEAR

199  Horizontal lever
200  Fulcrum bracket (single-cylinder engines)
201  Fulcrum bracket(double-cylinder engines)
202  Fulcrum bracket spindle
203  Vertical lever, short boss (single-cylinder engines)
204  Vertical lever, long boss (single-cylinder engines)
205  Vertical lever (double-cylinder engines)
206  Pin for vertical levers (single-cylinder engines)
207  Pin for vertical levers (double-cylinder engines)
208  Nut and pin for dashpot rod (single-cylinder engines)
209  Lever and pin for dashpot rod (double-cylinder engines)

210  Dashpot rod
211     Plunger
212     Body
213     Cap
214     Gland
215     Adjusting screw and wing nut
216     Packing nut
217     Stud piece


Illustration 035

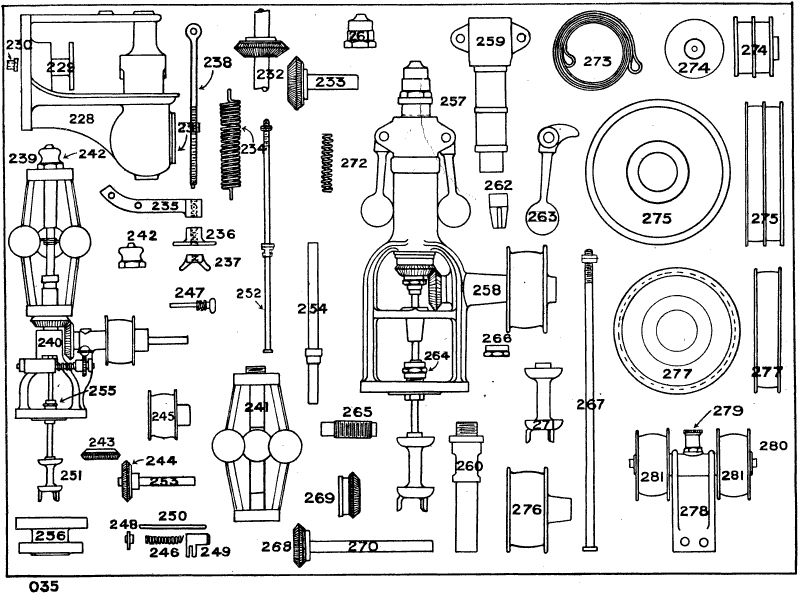

AUTOMATIC GOVERNOR GEAR - continued

228 Governor stand and valve-spindle guide
229     Gland
230     Neck bush
231     Front cover
232     Bevel wheels
233     Driving spindle

234 Speed adjusting gear spring
235     Bracket
236     Nut
237     Thumb screw
238     Screwed spindle

239  Pickering throttle valve governor, complete with valve
240     Bridge or arm bracket
241     Spring carriage
242     Top cap
243     Spring carriage wheel
244     Driving shaft wheel
245     Pulley
246     Tension spring
247     Tension worm
248     Tension worm wheel
249     Finger lifter
250     Tension shaft
251     Throttle valve
252     Throttle valve spindle, lifter collar, and locknuts
253     Driving shaft
254     Hollow centre tube
255     Stuffing box in three parts
256     Distance piece

THROTTLE VALVE GOVERNOR

257  Paxman patent throttle valve governor, complete with valve
258     Arm bracket
259     Head piece
260     Sleeve
261     Sleeve nut
262     Guide piece for spindle
263     Levers and balls
264     Stuffing box, three parts
265     Adjusting piece
266     Adjusting piece locking nut
267     Throttle valve spindle and nuts
268     Gear wheel on spindle
269     Gear wheel on head piece
270     Driving spindle
271     Throttle valve
272     Spring

273  Governor belt and fasteners
274  Double pulley for governor
275  Double pulley on crankshaft for governor
276  Single pulley for governor
277  Single pulley on crankshaft for governor

278  Jockey bracket for governor drive
279     Lubricator
280     Spindle
281     Pulleys

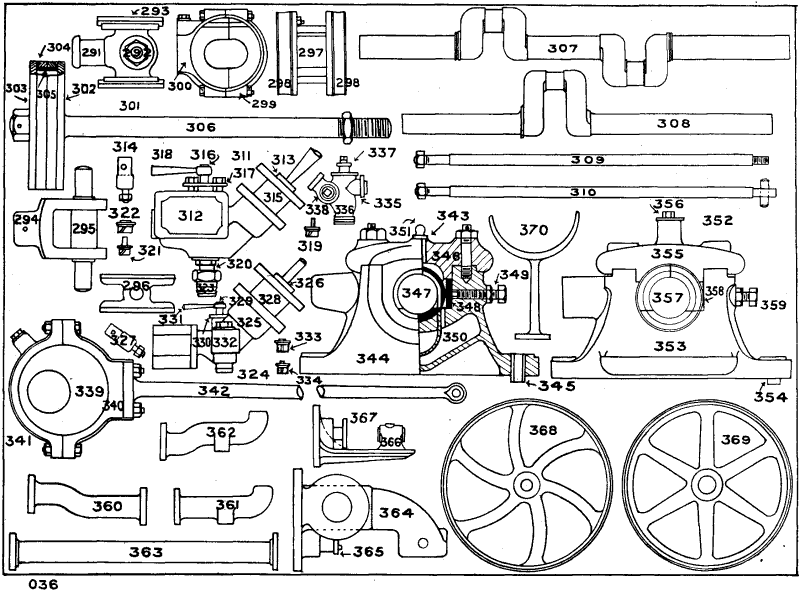

Illustration 036

PISTON, CROSSHEAD, CRANKSHAFT, &c.

291  Crosshead (for engines fitted with bored guide)
292     Pin
293     Slippers

294  Crosshead (for engines fitted with flat guides)
295     Pin
296     Slippers

297  Cut-off plate (double-cylinder engines) in halves
298     Eccentric sheave in halves
299     Eccentric strap, outer half
300     Eccentric strap, inner half

301  Piston, complete
302     Block
303     Plate
304     Rings
305     Spring ring
306     Rod and nuts

307  Crankshaft (for double-cylinder engines)
308  Crankshaft (tor single-cylinder engines)
309  Stay rod (screwed ends)
3IO  Stay rod (screwed and cottered end)

311  Feed pump (I909 type) complete
312     Body
313     Plunger
314     Plunger joint
315     Plunger gland
316     Plug cock
317     Plug cock gland
318     Plug cock handle
319     Suction valve
320     Suction valve seat
321     Delivery valve
322     Check valve
323     Suction tail piece

324  Feed pump (old type) complete
325     Body
326     Plunger
327     Plunger joint
328     Plunger gland
329     Plug cock
330     Plug cock gland
331     Plug cock handle
332     Suction box and valve
333     Delivery valve
334     Check valve

335  Feed-water-heater cock, complete
336     Body
337     Three-way plug and gland
338     Exhaust plug

339  Feed pump eccentric
340     Eccentric strap, inner half
341     Eccentric strap, outer half
342     Eccentric rod

343  Main bearing with chain lubrication, complete
344     Body, with studs
345     Ferrules
346     Caps
347     Brasses, three parts
348     Adjusting plate
349     Adjusting screws
350     Lubricating chain
351     Filling plug

352  Main bearing (old type) complete
353     Body, with studs
354     Ferrules
355     Caps
356     Plug for oil box
357     Brasses, three parts
358     Adjusting plate
359     Adjusting screws

360  Exhaust bend from cylinder
361  Exhaust bend to chimney
362  Exhaust bend to chimney (double bend)
363  Exhaust pipe and flanges
364  Throttle valve case and valve spindle guide
365  Valve spindle gland
366  Valve spindle guide (for double-cylinder engines)
367     Gland
368  Flywheel (curved arms)
369  Flywheel (straight arms)
370  Chimney rest


Illustration 037

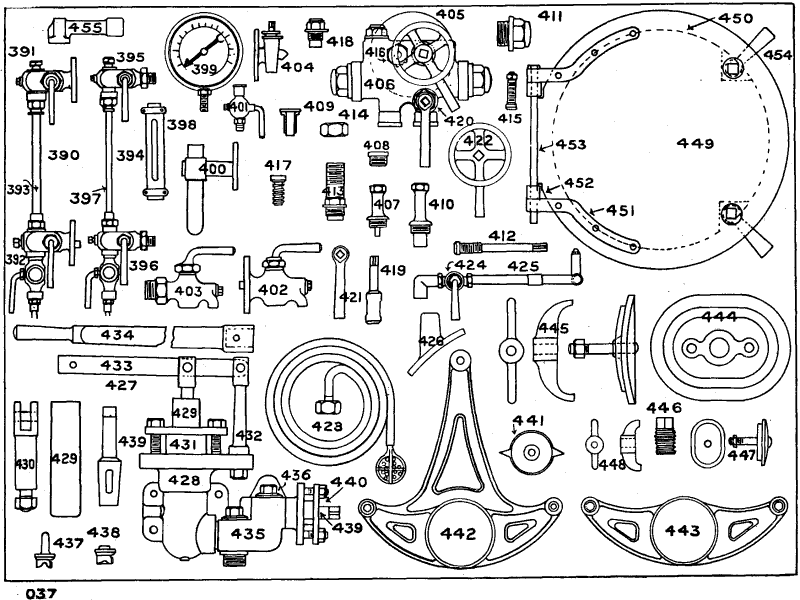

BOILER FITTINGS

390  Flanged water-gauge fitting, complete
391     Top cock
392     Bottom cock
393     Glass, with rubber washers

394  Screwed water-gauge fitting, complete
395     Top cock
396     Bottom cock
397     Glass, with rubber washer
398     Guard for gauge glasses

399  Pressure gauge
400     Syphon for ditto
401     Syphon cock for ditto

402  Flanged test cock
403  Screwed test cock
404  Blow-off cock

405  Combination injector, complete
406     Body
407     Steam nozzle
408     Lifting tube
409     Combining nozzle
410     Delivery nozzle
411     End caps
412     Steam valve spindle
413     Guide for ditto
414     Gland nut for ditto
415     Delivery stop valve
416     Guide for ditto
417     Back-pressure valve for ditto
418     Back-pressure valve guide for ditto
419     Water plug cock
420     Gland nut for ditto
421     Handle for ditto
422     Steam valve handwheel
423     Rubber hose and strainer, complete

424  Blast cock
425     Pipe and elbow, complete
426     Bracket

427  Hand feed pump complete
428     Body
429     Plunger
430     Plunger joint
431     Plunger gland
432     Fulcrum stud
433     Lever
434     Handle
435     Valve box
436     Valve box caps
437     Suction valve
438     Delivery valve
439     Plug cock
440     Plug cock gland

441  Water level pointer
442  Quadrant (colonial firebox)
443  Quadrant (ordinary firebox)
444  Manhole covers
445  Manhole cover crossbar
446  Manhole cover filling plug
447  Mudhole cover
448  Mudhole cover crossbar

449  Smokebox door
450     Baffle plate
451     Hinge
452     Eye bolts
453     Pin
454     Stud piece and catches

455  Distance piece for water gauges

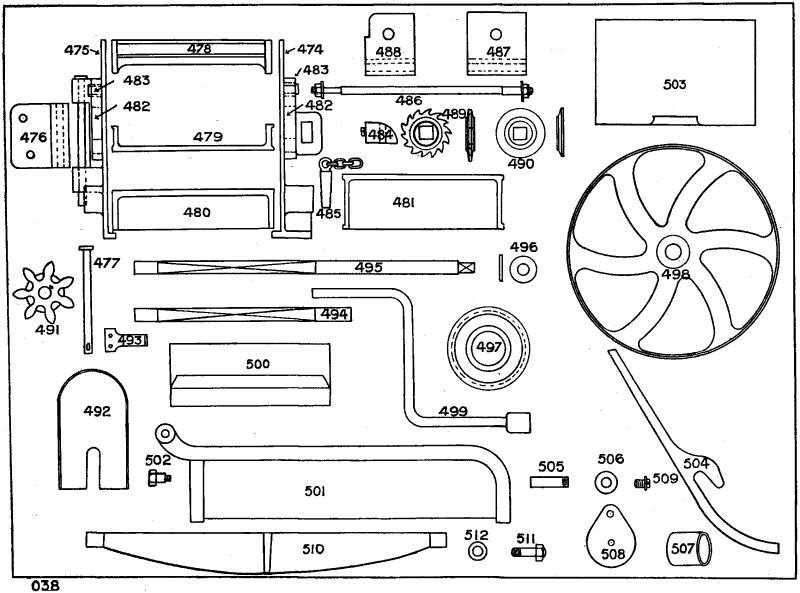

Illustration 038

HEAD & SCHEMIOTH'S STRAW-BURNING APPARATUS

474  Side plate, right hand
475  Side plate, left hand
476  Hinge
477  Hinge pin
478  Top distance piece
479  Middle distance piece
480  Back distance piece (bottom)
481  Front distance piece (bottom)
482  Lifting bearing
483  Lifting bearing ferrule
484  Catch
485  Pin and chain
486  Cross bolt, nuts, and washers
487  Door, middle
488  Door, sides
489  Tooth wheel, middle
490  Tooth wheel, end
491  Gear wheel
492  Gear wheel guard
493  Gear wheel guard lug
494  Top shaft
495  Bottom shaft
496  Washers
497  Driving pulley on crankshaft
498  Driven pulley, on mouth piece
499  Handle
500  Guard for tooth rollers
501  Feeding tray
502  Feeding tray set screws
503  Bottom plate
504  Baffle plate
505  Baffle plate pin
506  Baffle plate collar
507  Poke hole tube
508  Poke hole door
509  Stud and washer
510  Firebar
511  Stud for bearer bar
512  Collar for ditto

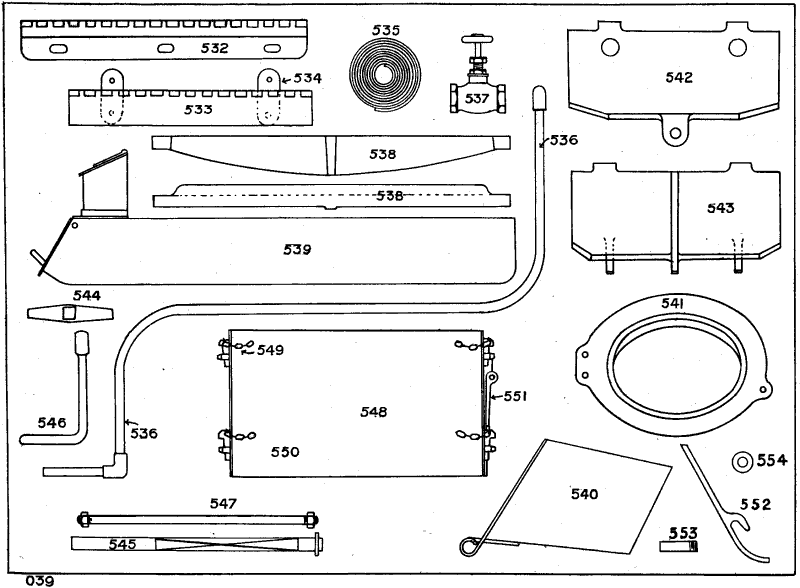

Illustration 039

HEAD AND SCHEMIOTH'S STRAW-BURNING APPARATUS - continued

532  Bearer bar
533  Bearer bar
534  Bearer bar slings
535  Belt
536  Piping (complete)
537  Wheel valve
538  Firebars (side)
539  Ashpan (complete)

ELWORTHY STRAW-BURNING APPARATUS

540  Straw shoot
541  C. I. mouth piece
542  Front and back plate
543  Side plate
544  Rocking bars
545  Rocking shaft
546  Handle
547  Stay rod
548  Ashpan
549  Ashpan cotter and chain
550  Ashpan cotter and bolt
551  Ashpan door, complete
552  Baffle plate
553     Studs
554     Stud collars

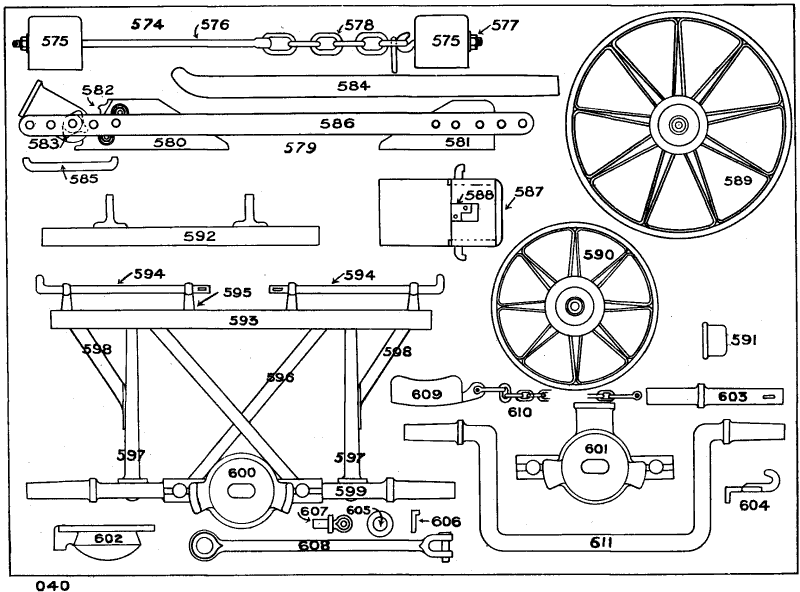

Illustration 040

UNDERGEAR

574  Ordinary lifting chocks complete
575     Wood block
576     Eye bolt
577     Hook bolt
578     Chains

579  Lever lifting chocks complete
580     Wood block (rack end)
581     Wood block (plain end)
582     C. I. rack
583     Pawl
584     Lever
585     Spindle for pawl
586     Side bar
587     Strap for chock
588     Shifting piece

589  Hind wheel complete
590  Front wheel complete
591  Wheel caps
592  Forecarriage splinter bar for single shafts

593  Forecarriage splinter bar for double shafts
594     Draw pin
595     Draft eye
596     Braces
597     Axle arms
598     Side stays
599     Front axle
600     Locking pan (for swing pole and shafts)
601     Locking pan (for fixed pole)
602     Locking pan head
603     Centre pin
604     Hook for skid
605     Axle collars
606     Axle keys
607     Drag stay eye
608     Drag stay
609     Skid
610     Skid chain and shackles
611     Hind axle

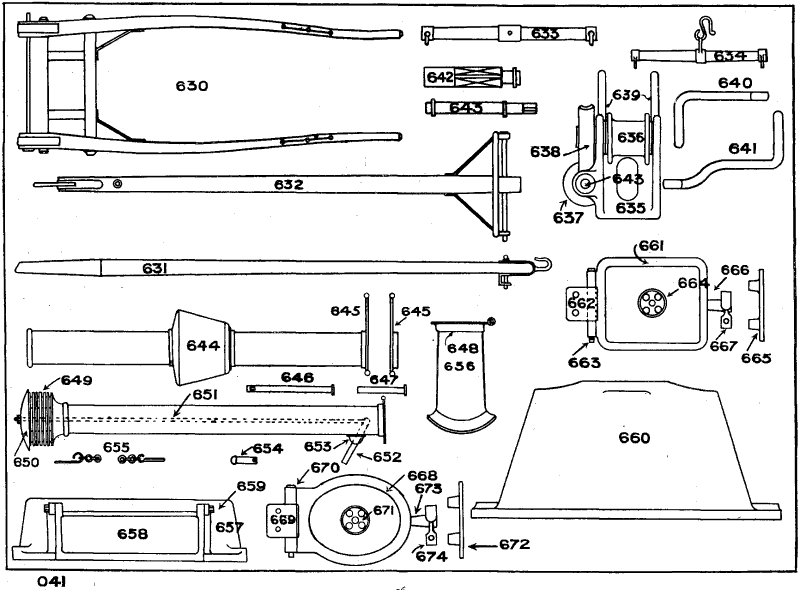

Illustration 041

UNDERGEAR, CHIMNEY, &c.

630  Horse shaft, complete
631  Fixed bullock pole, complete
632  Swing bullock pole, complete
633  Pummeltree
634  Whippletree and hook

635  Chimney-lifting drum bracket
636     Drum
637     Worm
638     Worm wheel
639     Guide studs for springs
640     Handle (straight)
641     Handle (bent)
642     Drum shaft
643     Worm shaft

644  Strube chimney, complete
645     Chimney hinge
646     Chimney hinge pin
647     Chimney securing pin
648     Chimney base, hinge ring

649  Wire spark arrester
650     Cap
651     Rod
652     Lever
653     Lever bracket
654     Lever bracket pin
655     Chain hook and pin

656  Chimney base
657  Firebox rest
658  Firebox rest door
659  Firebox rest door stud
660  Smokebox rest

661  Square firedoor complete
662     Hinge
663     Hinge pin
664     Ventilator
665     Baffle plate
666     Latch
667     Catch

668  Oval firedoor
669     Hinge
670     Hinge pin
671     Ventilator
672     Baffle plate
673     Latch
674     Catch


Page updated: 11 APR 2008
